The TOVOT Automatic Robotic Bag Emptying System is an intelligent bag handling solution designed for automatic unloading of powder and granular materials. Equipped with an industrial robot, automatic drum bag emptying unit, dust collection system, and PLC control, it delivers safe, efficient, and continuous material handling while reducing manual labor.
The system automatically completes robotic bag loading, bag opening, material discharge, empty bag collection, and dust-controlled conveying in one integrated process. It is widely used in industries such as plastics, chemicals, food processing, minerals, and building materials, and can be customized according to different bag types, material characteristics, and production capacities.
Solutions
Why Upgrade to an Automatic Robotic Bag Emptying System?
Increase productivity, reduce labor costs, improve workplace safety, and achieve clean, reliable bag emptying for powder and granular material handling.
Comparison
Automatic Robotic Bag Emptying VS Manual Bag Emptying
| Item |
Automatic Robotic Bag Emptying |
Manual Bag Emptying |
| Capacity |
200–400 bags/hour |
40–80 bags/hour |
| Labor Requirement |
1 operator |
3–5 operators |
| Dust Control |
Fully enclosed with dust collection |
High dust exposure |
| Material Loss |
Very low |
Higher material residue |
| Operating Safety |
Robotic operation |
Manual lifting and cutting |
| Production |
Continuous automatic operation |
Operator dependent |
How It Works

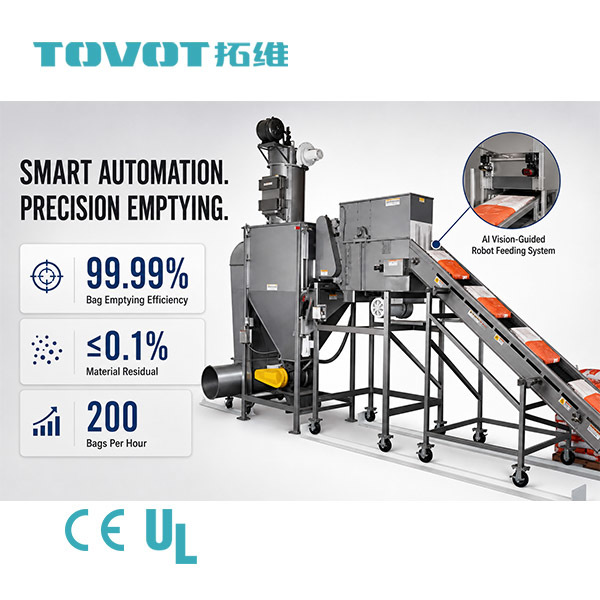

The Automatic Robotic Bag Emptying System consists of a robotic loading unit, drum bag emptying machine, dust collection system, and intelligent control system.

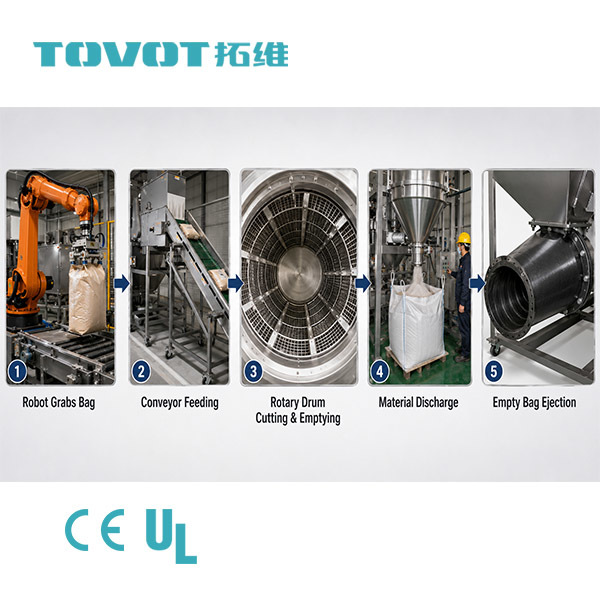

Process
- Bags are automatically detected and picked up by the industrial robot.
- The robot transfers the bags to the drum bag emptying station.
- The bag is opened and emptied while the drum separates the empty bag from the material.
- The material is discharged into a hopper and transferred to the next process by a screw or pneumatic conveying system.
- Empty bags are automatically collected for disposal while the dust collection system keeps the working area clean.
-
Specifications
| Item |
Specification |
| Capacity |
200–400 Bags/Hour (Per Robot) |
| Bag Weight |
10–75 kg |
| Material Type |
Powder & Granular Materials |
| Bag Type |
Woven, Kraft Paper, PE, Laminated Bags |
| Robot Type |
Industrial 6-Axis Robot |
| Control System |
PLC + HMI Touch Screen |
| Dust Collection |
Optional |
| Material |
Carbon Steel / SUS304 Stainless Steel |
| Power Supply |
380V 50Hz (Customizable) |
| Air Pressure |
0.6–0.8 MPa |
Applications
The Automatic Robotic Bag Emptying System is suitable for handling various powder and granular materials, including:
- PVC Powder
- Plastic Pellets
- Resin
- Chemical Powders
- Food Ingredients
- Fertilizers
- Mineral Powders
- Additives
- Masterbatch
- Recycling Materials
