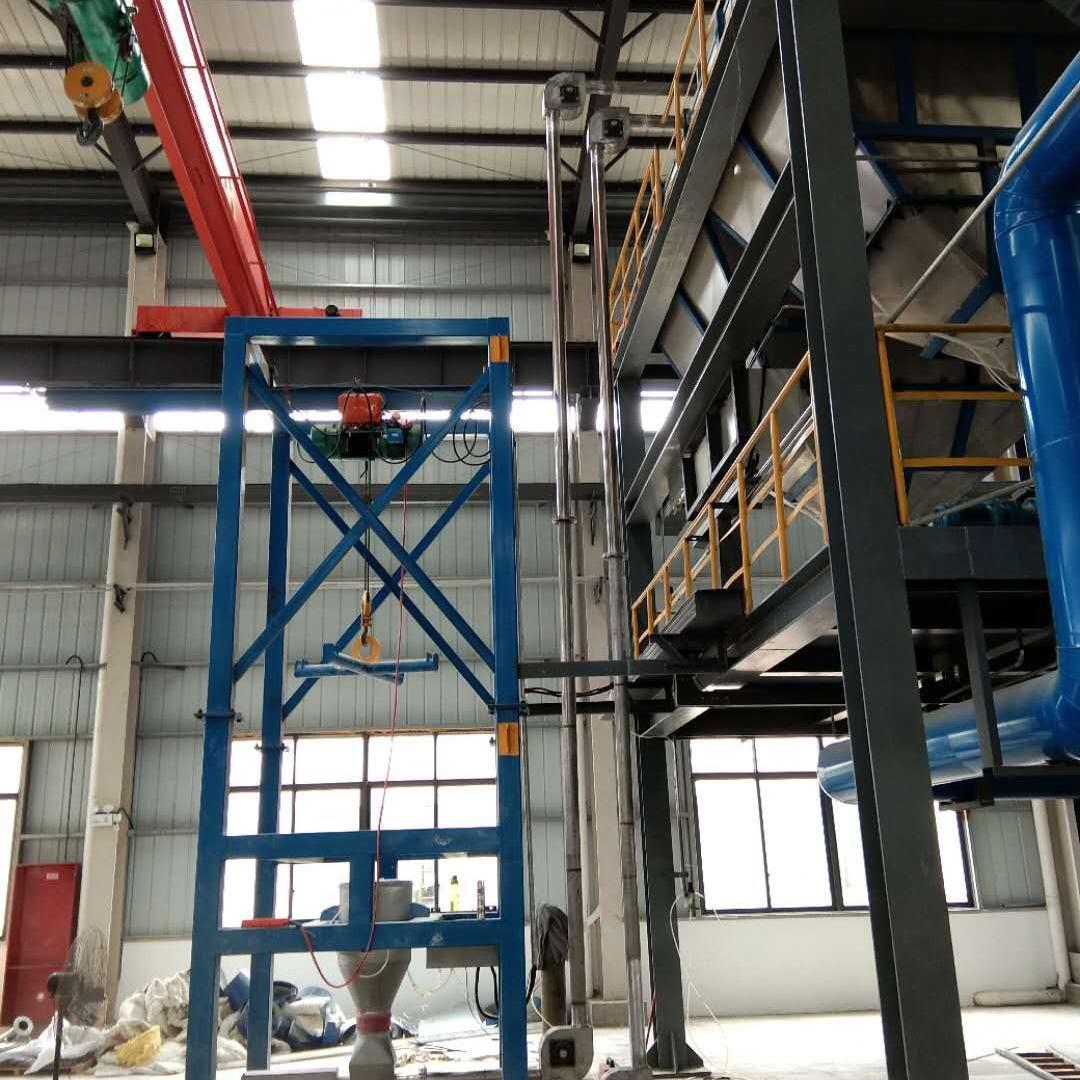

Automatic Enclosed Tube Chain Conveyor With Customizable Length And Low Maintenance For Bulk Material Handling
The Tube Chain Conveyor System is an automatic enclosed conveying solution designed for transporting powder, granule, pellet, and bulk materials. The system uses a continuous chain with discs inside a sealed tube to achieve stable and efficient material transfer.
The Tube Chain Conveyor System provides clean and reliable conveying performance with reduced dust leakage, low material loss, and flexible installation. It can transport materials horizontally, vertically, and at different angles, making it suitable for various industrial production environments.
The Tube Chain Conveyor System is widely used in plastic processing, food production, chemical manufacturing, building materials, agriculture, and other industries. The system can be customized according to conveying distance, capacity, material type, and production line requirements.
Main Features
- The Tube Chain Conveyor System adopts a fully enclosed design to improve cleanliness and reduce material contamination during transportation.
- With flexible conveying routes and compact structure, the Tube Chain Conveyor System can be easily integrated into existing production lines.
- The special disc chain structure provides gentle material handling, stable conveying performance, and reduced material breakage.
- The Tube Chain Conveyor System supports OEM customization for different materials, capacities, layouts, and industrial applications.
How Tube Chain Conveyor System Works
The Tube Chain Conveyor System works through a moving chain installed inside an enclosed pipe. The discs fixed on the chain push materials forward during continuous operation.
Materials enter from the feeding inlet and are transported through the closed tube to the discharge point. The system can be connected with feeding equipment, dosing systems, mixing systems, and automatic production lines.
Technical Specifications
| Item |
Specification |
| Machine Type |
Tube Chain Conveyor System |
| Conveyor Type |
Enclosed Tube Chain Conveyor / Disc Chain Conveyor |
| Application Material |
Powder, Granule, Pellet, Bulk Material |
| Conveying Capacity |
0.5-80 m³/h |
| Conveying Distance |
3-100 m (Customized) |
| Pipe Diameter |
108 mm / 133 mm / 159 mm / 219 mm |
| Machine Material |
Carbon Steel / Stainless Steel 304 / Stainless Steel 316L |
| Drive Power |
1.5-22 KW |
| Voltage |
220V / 380V / Customized |
| Conveying Direction |
Horizontal / Vertical / Inclined |
| Control System |
Automatic PLC Control |
| Design Type |
OEM Customized Tube Chain Conveyor System |
Applications
The Tube Chain Conveyor System is suitable for plastic pellets, resin granules, food ingredients, chemical powders, agricultural products, feed materials, and other bulk materials.
It is commonly applied in plastic factories, food processing plants, chemical plants, building material production lines, and automated manufacturing systems.
Frequently Asked Questions
Q: What is a Tube Chain Conveyor System?
A: The Tube Chain Conveyor System is an enclosed conveyor equipment that uses a chain and disc structure to transport powder, granule, pellet, and bulk materials efficiently.
Q: What materials can the Tube Chain Conveyor System handle?
A: It can handle plastic pellets, powder materials, food ingredients, chemical materials, grains, and other bulk materials.
Q: Can the Tube Chain Conveyor System be customized?
A: Yes. The system can be customized according to conveying distance, capacity, material characteristics, pipe diameter, and factory layout.
Q: Can it be integrated with other equipment?
A: Yes. The Tube Chain Conveyor System can connect with feeding systems, dosing systems, mixing systems, and automatic production lines.
